Computerized Jacquard Flat Knitting Machine

KH-100ECO

Computerized Jacquard Flat Bed Knitting Machine (no transfer).

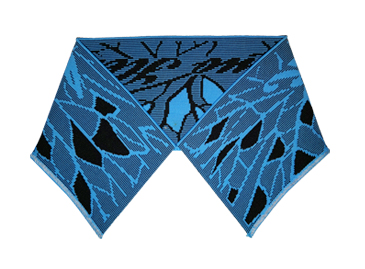

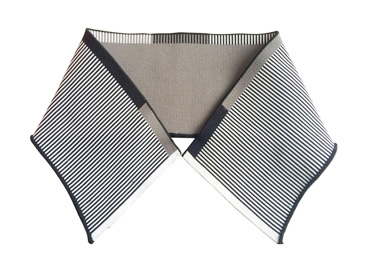

This machine is Kauo Heng entry flat bed knitting machine for production of jacquard trimmings.

This machine is available in 2 main configurations:
-1 carriage single system on a 40 inches bed.
-2 single system carriages on a 60 or 80 inches bed.

Narinder International offer a full support for this machine, from installation, training, repair and after sale service.

Feature

COMPUTERIZED CONTROL
LCD display easy to read, knit design and programming are directly operated with keyboard.

SEGMENT NEEDLE BED
Designed for high speed and easy replacement in the event of accidental damage, also equipped shock sensor stop motion device.

TANDEM SYSTEM
Double system or tandem two single system with a variably adjustable stroke carriages.

TOP TENSION
Newly electronic top tension easy to thread the yarn through.

SPECIFICATIONS KAUO HENG KH-100ECO

GAUGE

7G, 10G, 12G, 14G, 16G, 18G

KNITTING WIDTH

60″ (26″X 2), 80″ (36″X 2)

CAM SYSTEM

Tandem Single Cam System, Twin Carriage.

KNITTING SPEED

Max. 1.2 M/Sec.
Knitting Speed Varies According To Gauge, Yarn And Knitting Conditions.

YARN CARRIERS

12 Yarn Carriers On 2 Double Rails.

NEEDLE SELECTION

Full Jacquard Selection Via Special Solenoids.

NEEDLE BED

Replaceable Segment Needle Bed.

STITCH DENSITY

30 Levels Independent Selection, Electronic Control With Stepping Motor 00-198 Steps.

RACKING

Racked By Servo Motor And High Precision Ball Screw System.
Racking Also Available 1/2 Pitch From Any Position.

FABRIC TAKE DOWN

32 Levels Changeable Speed, Automatically Adjustable On Cach Level.

STOP MOTION

Yarn Break, Knot, Press Off, Needle Break, Shock, Over Torque, Piece Count, Over Run, Program Error Etc

DRIVE

AC Servo Motor, Tooth Shape Driving Belt, No Oil Needed.
Variable Adjustable Programmable Speed Levels.

TOP TENTIONS

Electronic Top Tensions Easy To Thread The Yarn Through.

SAFETY COVER

Full Safety Cover For Anti-Noise And Dust Proofing.

Emergency Stop Buttons.

OPERATION LAMP

Green : Normal Operation.
Yellow : Abnormal Stop.

FLUORESCENT LAMP

Inside Of Safety Cover And Fabric Take Down.

WOODEN CASE

2900 X 1100 X 1790 Mm. N./G. Weight 550/700 Kgs. (60″)
3480 X 1100 X 1790 Mm. N./G. Weight 700/900 Kgs. (80″)

CONTROLLER

DATA INPUT

3.5″ Micro Floppy.

OPERATION & DISPLAY

LCD Display Screen, Chinese And English Versions Available

PATTERN MEMORY

1,024 Wales X 1,024 Courses.

POWER

3 Phase AC 220V 50/60HZ..
