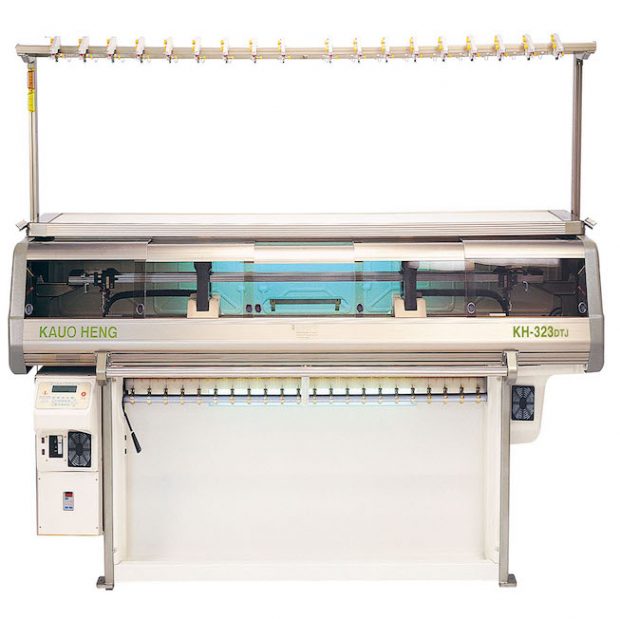

Flat Knitting Machine KH- 323DTJ
Feature
COMPUTERIZED CONTROL
Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine. LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.
SEGMENT NEEDLE BED
Designed for high speed and easy replacement in the event of accidental damage. (Option)
CAM SYSTEM
Double system or tandem two single system with a variably adjustable stroke carriages.
TOP TENSION
Newly electronic top tension easy to thread the yarn through.
SPECIFICATIONS KAUO HENG KH-323 DTJ |
|
MODEL |
KH-323DTJ |
GAUGE |
7G, 10G, 12G, 14G, 16G, 18G |
KNITTING WIDTH |
60″ (26″X 2), 80″ (36″X 2), 100″ (46″X 2) |
TRANSFER |
Transfer From Front To Back And Vice Versa, Independent Of Carriage Direction. |
KNITTING SPEED |
Max. 1.2m/Sec. Knitting Speed Varies According To Gauge, Yarn And Knitting Condition. |
YARN CARRIER |
12 Yarn Carriers On Three Double Rails. |
CAM SYSTEM |
Double System Or Tandem 1+1 System. Tuck On Front Bed & Rear Bed, High Butt & Low Butt System. |
JACK SYSTEM |
Jack + Out Of Action Position On Front Bed And Rear Bed, Jack Knit And Jack Tuck, For Pattern Of Bird-Eye, Square & Mini-Jacquard Etc. |
NEEDLE BED |
Replaceable Segment Needle Bed. (Option) |
STITCH DENSITY |
Electronic Control With Stepping Motor 00-99 Levels. |
RACKING |
6 Levels To Left Or To Right. |
FABRIC TAKE-DOWN |
Compound Main Roller, Torgue Motor Control, High Speed & Low Speed Adjustable. |
STOP MOTION |
Yarn Break, Knot, Needle Break, Shock, Fabric Drop Out, Wraparound Check, Piece Count, Motor Overload Etc. |
DEIVE |
Timming Belt, No Oil Needed, Programming Speed. |
TOP TENTIONS |
Electronic Top Tensions Easy To Thread The Yarn Through. |
OPERATION LAMP |
Green : Normal Operation. Yellow : Abnormal Stop. |
FLUORESCENT LAMP |
Inside Safety Cover And Take-Down. |
POWER |
220V, 1/2HP Motor. |
CONTROL SYSTEM |
Computer Control LCD Display. |
WOODEN CASE |
2900 X 1100 X 1790 Mm. N./G. Weight 700/1050 Kgs. (60″) 3480 X 1100 X 1790 Mm. N./G. Weight 800/1200 Kgs. (80″) |
