Our Products
Kauo Heng Precision Machinery Co., LTD. established in 1972, is an up and coming company focused on manufacturing high quality and efficient computerized flat-knitting machines. In line with the consistent sincere letter and steady and sure management idea, Kauo Heng Company improves the professional technique and R&D constantly.

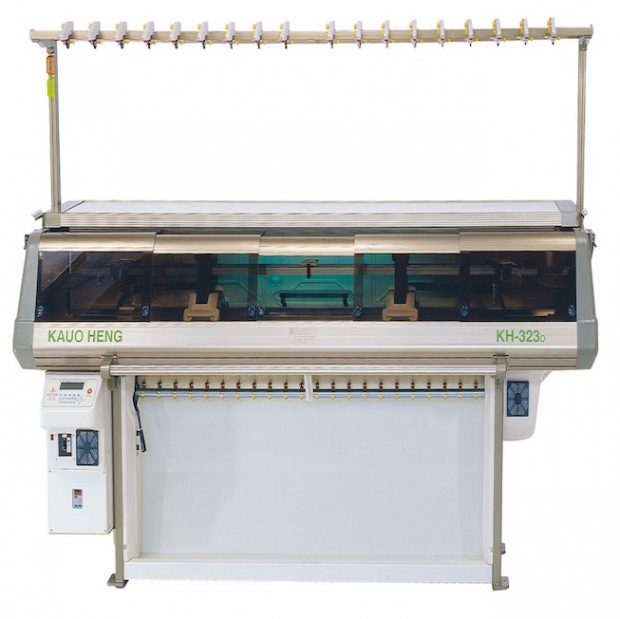

Flat Knitting Machine KH- 323D
This is our best selling Kauo Heng flat bed knitting machine in South Africa, two single system carriages for production of trimmings and/ or jersey panels.
This knitting machine is offered in various bed length and gauges.
Narinder International will train your operators on site for 5 days.
Narinder International offer a full support for this machine, from installation, training, repair and after sale service.
Feature
COMPUTERIZED CONTROL
Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine.
LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.
SEGMENT NEEDLE BED
Designed for high speed and easy replacement in the event of accidental damage. (Option)
CAM SYSTEM
Double system or tandem two single system with a variably adjustable stroke carriages.
TOP TENSION
Newly electronic top tension easy to thread the yarn through.
SPECIFICATIONS KAUO HENG KH-323D |
|
|
GAUGE |
7G, 10G, 12G, 14G, 16G, 18G |
|
KNITTING WIDTH |
60″ (26″X 2), 80″ (36″X 2) |
|
CAM SYSTEM |
Double System Or Tandem 1+1 System. Tuck On Front Bed & Rear Bed, High Butt & Low Butt System. |
|
KNITTING SPEED |
Max. 1.2 M/Sec. Knitting Speed Varies According To Gauge, Yarn And Knitting Conditions. |
|
YARN CARRIERS |
2 Yarn Carriers On Three Double Rails. |
|
NEEDLE SELECTION |
Full Jacquard Selection Via Special Solenoids. |
|
NEEDLE BED |
Replaceable Segment Needle Bed. (Option) |
|
STITCH DENSITY |
Electronic Control With Stepping Motor 00 – 99 Levels. |
|
RACKING |
6 Levels To Left Or To Right. |
|
FABRIC TAKE DOWN |
Compound Main Roller, Torque Motor Control, 2 Separates Speeds Adjustable Each. |
|
STOP MOTION |
Yarn Break, Knot, Needle Break, Shock, Fabric Drop Out, Wraparound Check, Piece Count, Motor Overload Etc. |
|
DRIVE |
Timing Belt, No Oil Needed, Programming Speed. |
|
TOP TENTIONS |
Electronic Top Tensions Easy To Thread The Yarn Through. |
|
SAFETY COVER |
Full Safety Cover For Anti-Noise And Dust Proofing. |
|
OPERATION LAMP |
Green : Normal Operation. Yellow : Abnormal Stop. |
|
FLUORESCENT LAMP |
Inside Of Safety Cover And Fabric Take Down. |
|
POWER |
220V, 1/3HP Motor. |
|
CONTROL SYSTEM |
Computer Control-LCD Display. |
|
WOODEN CASE |
2900 X 1100 X 1790 Mm. N./G. Weight 550/700 Kgs. (60″) 3480 X 1100 X 1790 Mm. N./G. Weight 700/900 Kgs. (80″) |
