MB310D/B/MF Shearing Machine
Features
- Front driving and rear driving is by worm gear driving, tension adjusting is more convenient.
- Shearing support is the triangle forged steel with 90° angle.
- Motor transmission tension unit use air cylinder driving.
- Automatic oiling-filling device (Optional)
- Automatic expending centering device (Optional)
- Seam detector alarming device.
This machine is used for shearing warp knitting short velvet, wool spinning fabric, woolen fabric etc. After shearing, fabric will be smoother.
Specifications MB 310 D/B/MF Shearing Machine |
|||
|
MODEL |
MB310D
|
MB310B
|
MB310MF
|
|
FOR KNITTING FABRIC
|
Tricot Knitting Fabric (curi)
|
Tatting Fabric (uncurl)
|
Woolen Fabric
|
|
WORKING WIDTH |
14.46kW(2000mm 2200mm)
16.46kW(2500mm) |
12.68kW(2000mm 2200mm)
14.68kW(2500mm) |
17.11kw{2000mm 2200mm)
19.11kW (2500mm) |
|
WORKING WIDTH |
2000mm 2200mm 2500mm
|
2000mm 2200mm 2500mm
|
2000mm 2200mm 2500mm
|
|
OVERALL DIMENSIONS
|
3780*4400*3400 (mm)
|
3780*4400*3400 (mm)
|
3780*4400*3400 (mm)
|
|
FABRIC SPEED
|
0-35 m/min
|
0-35 m/min
|
0-35 m/min
|
|
EXPENDING ROLLER
|
5pcs
|
2pcs
|
1pcs
|
|
TIGERING ROLLER
|
No
|
No
|
Yes
|
|
CLEANING ROLLER
|
No (Options)
|
Yes
|
No
|
|
PATTING ROLLER
|
No
|
Yes
|
Yes
|
|
SHEARING SPEED
|
900rpm (50Hz),
Inverter control |
900rpm (50Hz),
Inverter control |
900rpm (50Hz),
Inverter control |
|
SPIRAL DIRECTION
|
Right
|
Right
|
Right
|
|
BLADE & SHEAR
|
Ø 185
|
Ø 185
|
Ø 185
|
|

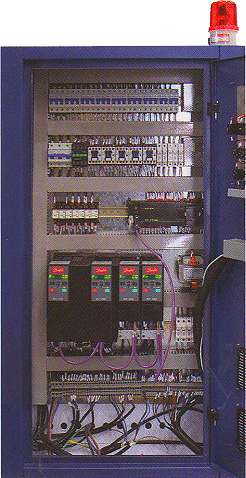

CONTROL PANEL
|
Touch Screen
|
Touch Screen
|
Touch Screen
|
|
PCL
|
Germany SIEMENS
|
Germany SIEMENS
|
Germany SIEMENS
|
|
PILE HEIGHT CONTROL
|
manual
|
manual
|
automatic
|
|
SEAM DETECTOR
|
Yes (auto alarm)
|
Yes (auto alarm)
|
Yes (auto alarm)
|
|
METAL DETECTOR
|
Yes
|
Yes
|
Yes
|
|
AUTO OIL-FILLING
|
Option
|
Option
|
Option
|
|
AUTOMATIC CENTERING
|
Option
|
Option
|
Option
|
|
DUST REMOVAL
|
Option
|
Option
|
Option
|
