JIANG SU Yingyou Textile Machinery Co., Ltd. is a national high-tech enterprise, we are engaging in production textile finishing machinery for more than 40 years, own a powerful technicians’ team and advanced producing ability.
MB331C Raising Machine
- Suitable for ponte roma knitted fabrics and woven fabrics
Technical Parameters
- Working width: 2000mm 2200mm 2500mm
- No.of raising roller: 48
- Dia.of raising roller: 70mm
- Working speed: 5-40m/min
- Dia. of raising drum: 1500mm
- Rotary speed of raising drum: 60-90rpm
- Total installed power: 55.58kw

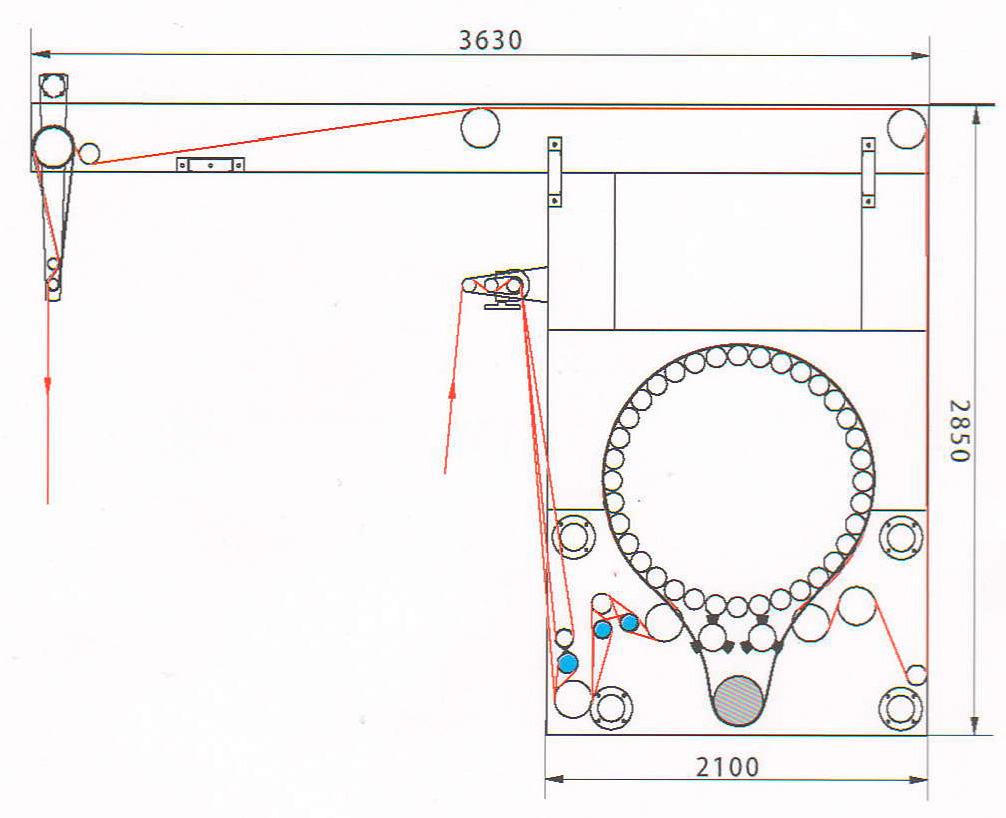

- Overall dimensions:
3630x4320x3050mm (2000mm)
3630x4520x3050mm (2200mm)
3630x4820x3050mm (2500mm)
Specifications MB331C Raising Machine |
||||
|
MODEL |
MB331C8024
|
MB331C8032
|
MB331C7036
|
MB331C7024
|
|
RAISING ROLLER WIDTH
|
2000 2200
2500 2800 3200 |
2000 2200
2500 2800 3200 |
2000 2200
2500 |
2000 2200
2500 |
|
USAGE |
ø80with 24 rollers is especially
suitable for super soft velvet industry |
ø80with 32 rollers is especially
suitable for super soft warp knitting short-wool industry |
ø70with 36 rollers is especially
suitable for goral fabric, bottom cloth of fake leather, warpknitting industry |
ø70with 36 roller especially suitable for blanket and woolen industry
|
|
NUMBER OF RAISING ROLLER
|
24
|
32
|
36
|
24
|
|
DIAMETER OF RAISING ROLLER
|
ø80
|
ø80
|
ø70
|
ø70
|
|
WORKING SPEED
|
5-40m/min
|
5-40m/min
|
5-40m/min
|
5-40m/min
|
|
DIAMETER OF CYLINDER
|
ø850mm
|
ø1120mm
|
ø1120mm
|
ø750mm
|
|
ROTARY SPEED OF CYLINDER
|
60-90rpm
|
60-90rpm
|
60-90rpm
|
60-90rpm
|
|
TOTAL MOTOR POWER
|
40kw
|
40kw
|
40kw
|
30kw
|
|
OVERALL DIMENSIONS
|
length*wide*height
3230x4320x2850 3230x4520x2850 3230x4820x2850 3230x5l20x2850 3230x5520x2850 |
length*wide*height
3230x4320x2850 3230x4520x2850 3230x4820x2850 3230×5’l 20×2850 3230x5520x2850 |
length*wide*height
3230x4320x2850 3230x4520x2850 3230x4820x2850 |
length*wide*height
3230x4320x2850 3230x4520x2850 3230x4820x2850 3230×5’l 20×2850 3230x5520x2850 |
