Flat Knitting Machine

KH- 313AJN

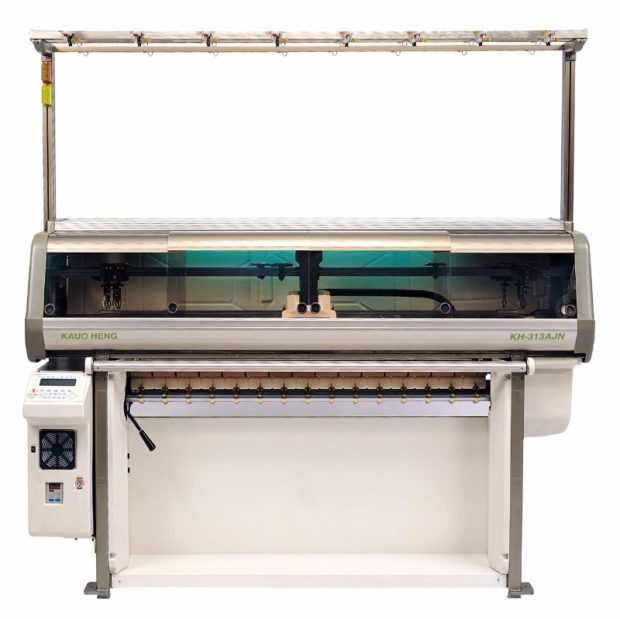

Flat Knitting Machine KH-313AJN

kh-313ajn

Feature

L1

TOP TENSION
Newly electronic top tension easy to thread the yarn through​.

f2

YARN FEEDER
​►Feeders made of special steel which prevents them from shaking during knitting.
►This eliminates yarn breakage.​
►They are also easy to thread the yarn through.

LY@

COMPUTER CONTROL
Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine. LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel. ​

L1

SEGMENT NEEDLE BED
Designed for high speed and easy replacement in the event of accidental damage.

SPECIFICATIONS KAUO HENG KH-313AJN

MODEL KH-313AJN
GAUGE 7G, 10G, 12G, 14G, 16G, 18G, 20G, 22G
KNITTING WIDTH 40″
CAM SYSTEM One carriage, Single system.
Tuck on front bed & rear bed, high butt & low butt system.
Cams action system controlled with Stepping motor.
KNITTING SPEED Max. 1.2 m/sec.
Knitting speed varies according to gauge, yarn and knitting condition.
YARN CARRIERS 6 yarn carriers on 3 rails.
Equipped special Lycra yarn carrier.
JACK SYSTEM Jack + out of action position on front bed and rear bed, jack knit and jack tuck, for pattern of bird-eye, square & mini-jacquard etc.
NEEDLE BED Replaceable segment needle bed.
STITCH DENSITY Electronic control with stepping motor 00 – 99 levels.
RACKING 6 levels to left or to right.
FABRIC TAKE-DOWN Compound main roller, torque motor control, two separate speeds adjustable each.
Control with motor 00-99
STOP MOTION Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
DRIVE Timming belt, no oil needed, programming speed.
TOP TENTIONS Electronic top tensions easy to thread the yarn through.
SAFETY COVER Full safety cover for anti-noise and dust proofing.
OPERATION LAMP Green : normal operation. (Running)
Yellow : abnormal stop.
FLUORESCENT LAMP Inside of safety cover.
POWER 220V, 1/3HP motor.
CONTROL  SYSTEM Computer control LCD display.

USB

USB equipment.
UPS UPS function with flash memory.
WOODEN CASE 1940 x 1000 x 1790 mm. N./G. Weight 450/600 kgs.
