Kauo Heng Precision Machinery Co., LTD. established in 1972, is an up and coming company focused on manufacturing high quality and efficient computerized flat-knitting machines. In line with the consistent sincere letter and steady and sure management idea, Kauo Heng Company improves the professional technique and R&D constantly.

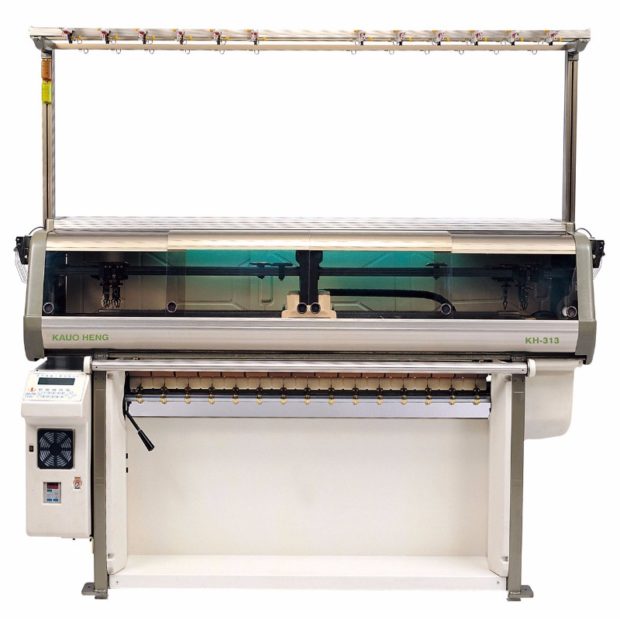

Flat Knitting Machine KH-313
Feature
TOP TENSION
Newly electronic top tension easy to thread the yarn through.
YARN FEEDER
►Feeders made of special steel which prevents them from shaking during knitting.
►This eliminates yarn breakage.
►They are also easy to thread the yarn through.
COMPUTER CONTROL
Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine. LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.
SEGMENT NEEDLE BED
Designed for high speed and easy replacement in the event of accidental damage. (Option)
Flat Knitting Machine KH-313
SPECIFICATIONS KAUO HENG KH-313 |
|
| MODEL | KH-313 |
| GAUGE | 7G, 10G, 12G, 14G, 16G, 18G, 20G, 22G |
| KNITTING WIDTH | 54″ |
| CAM SYSTEM | One carriage, Single system. Tuck on front bed & rear bed, high butt & low butt system. Cams action system controlled with Stepping motor. (V2) |
| KNITTING SPEED | Max. 1.2 m/sec. Knitting speed varies according to gauge, yarn and knitting condition. |
| NEEDLE BED | Replaceable segment needle bed. (Option) |
| STITCH DENSITY | Electronic control with stepping motor 00 – 99 levels. |
| RACKING | 6 levels to left or to right. |
| FABRIC TAKE-DOWN | Compound main roller, torque motor control, two separate speeds adjustable each. Control with motor 00-99 (V2) |
| STOP MOTION | Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc. |
| DRIVE | Timing belt, no oil needed, programming speed. |
| TOP TENSIONS | Electronic top tensions easy to thread the yarn through. |
| SAFETY COVER | Full safety cover for anti-noise and dust proofing. |
| OPERATION LAMP | Green : normal operation. (Running) Yellow : abnormal / manual stop. |
| FLUORESCENT LAMP | Inside of safety cover. |
| POWER | 220V, 1/3HP motor |
| CONTROL SYSTEM | Computer control LCD display. |
| USB | USB equipment. (V2) |
| UPS | UPS function with flash memory. (V2) |
| WOODEN CASE | 2350 x 1100 x 1790 mm. N./G. Weight 550/700 kgs. |
