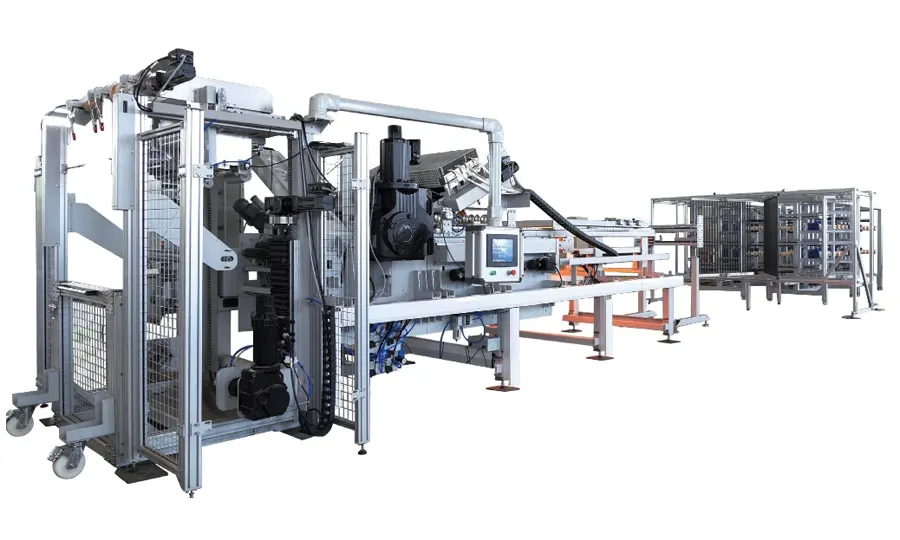

Offline Fiber Spreading Machine
Feature

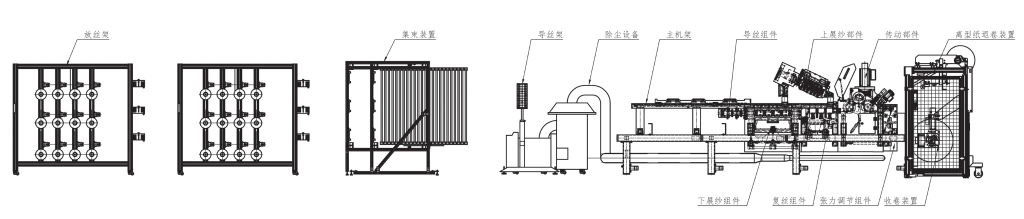

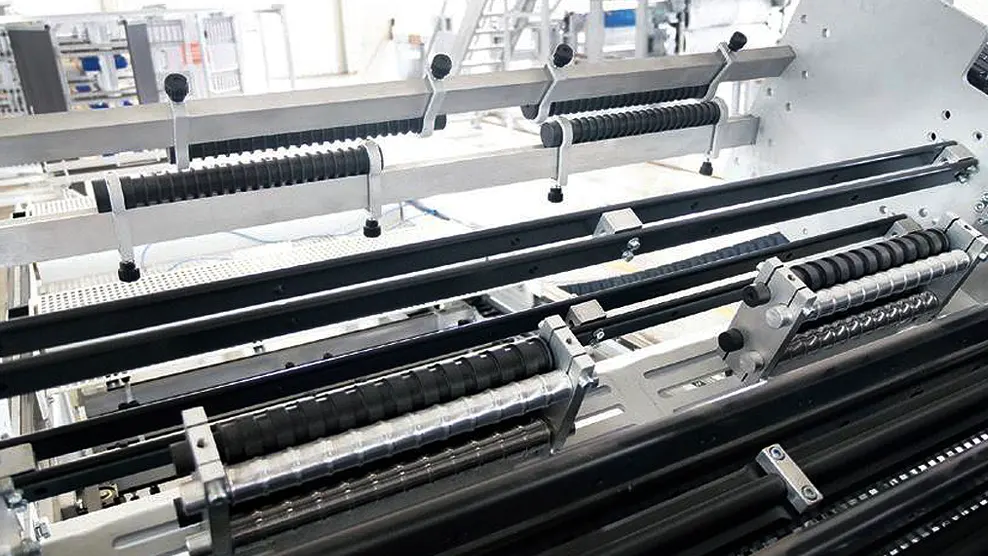

Off-line fiber spreader mainly according to the process requirements of a certain specification of finished carbon fiber through unwinding, traction, heating, vibration fiber development and other processes, so that carbon fiber can be fully laid out, and with a certain tension and set length wound to the corresponding pan head.
It can be used as an independent device, or it can be used with a multi-axial warp knitting machine.
Specifications For Multi Axial Warp Knitting Machine
| Main parameters of Equipment | |
| Length (mm） | 22000 |
| Width (mm) | 3200 |
| High (mm） | 3000 |
| Width (mm) | 2*254(double station) |
| Adapted ingredient | 12K、24K、48K |
| Product weight in grams (g/m²) | 75/100/125 (12K); 150/200/300 (24K,48K) |
| Unwinding tension (N) | 40~120 |
| Maximum coiling speed (m/min) | 15 |
| Single pan head capacity | Total length approx.1000 m(200g/m²carbon cloth) |
| Yarn stand ingot position | 96 |
