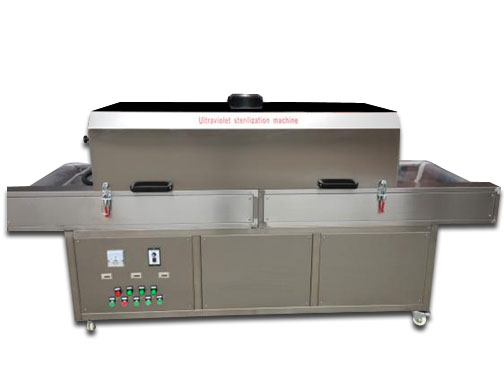

UV MASK STERILIZER

4.5 Metre

UV MASK STERILIZER 4.5 Metre

Packing Dimension: 2 packages of 2.35 m X 0.88 m X 1.65 m (each)

Gross Weight: 700KG

Accessories

  1. Working Area Tunnel :2mm stainless steel 1 set
  2. Working Area Tunnel Liner:0mm #304 mirror finished stainless steel 1set
  3. Machine Frame:Square Iron 1 Set Size: 2″Square Iron
  4. Draught Fans System:Exhaust Fans(Exhaust The Noxious Gas) size :6”
  5. Conveyer Belt :PUV Wire Belt
  6. Main Switch :20A
  7. Motor: 800W (Speed Adjust Transducer )
  8. Transducer:500W(Electronic Step less Frequency Converter Speed Digital Display )
  9. Exhaust Fans :CY-125
  10. Ampere Meter :50A 1 Set
  11. Voltmeter :220V 1 Set
  12. Working Voltage: 200V–220V (±5) Three Wire System 50Hz

Parameter

  1. Total Length 4500mm
  2. Working area length 3500mm
  3. Material input area: 500mm material output area :500mm
  4. In/out height: 200mm( Adjustable)
  5. Width of conveyer belt: 500mm
  6. Distance of conveyer belt from the ground 750±20mm

Sterilizing Electronic Accessories

NO.
NAME
MODEL
ORIGIN
BRAND
1
UV LAMP
TUV20W
NEITHERLAND
PHILIPS
2
MAIN SWITCH
BNK32
KOREA
LG
3
ELECTROMAGNETIC CONTACTOR
CJ2910
CHINA
CHNT
4
THERMORELAY
OMRON-10K
JAPAN
OMRON
5

INTERMEDIATE RELAY

RY4S-U
JAPAN
OMRON
6
SOLID-STATE RELAY
SSR-40DA
TAIWAN
Fotek
7
DRAUGHT FAN MOTOR
2HP
TAIWAN
CY
8
SENSOR
PT100
TAIWAN
NR
9
BUTTON
Ts2
CHINA
ZHONGLI
10
INDICATOR
IEC255
TAIWAN
XINGTAI
